Q Pod 3.0 Plus

Acoustic Meeting Pod for Small Teams

The Q POD 3.0 Plus is a spacious acoustic pod for up to four people, ideal for meetings, brainstorming, and collaboration. Featuring integrated charging ports and optional sofa seating, it provides a private and comfortable space for productive discussions.

0.4 A

Power Consumption

681 KG

Pod Weight

Technical Specification

Designed around the way you work.

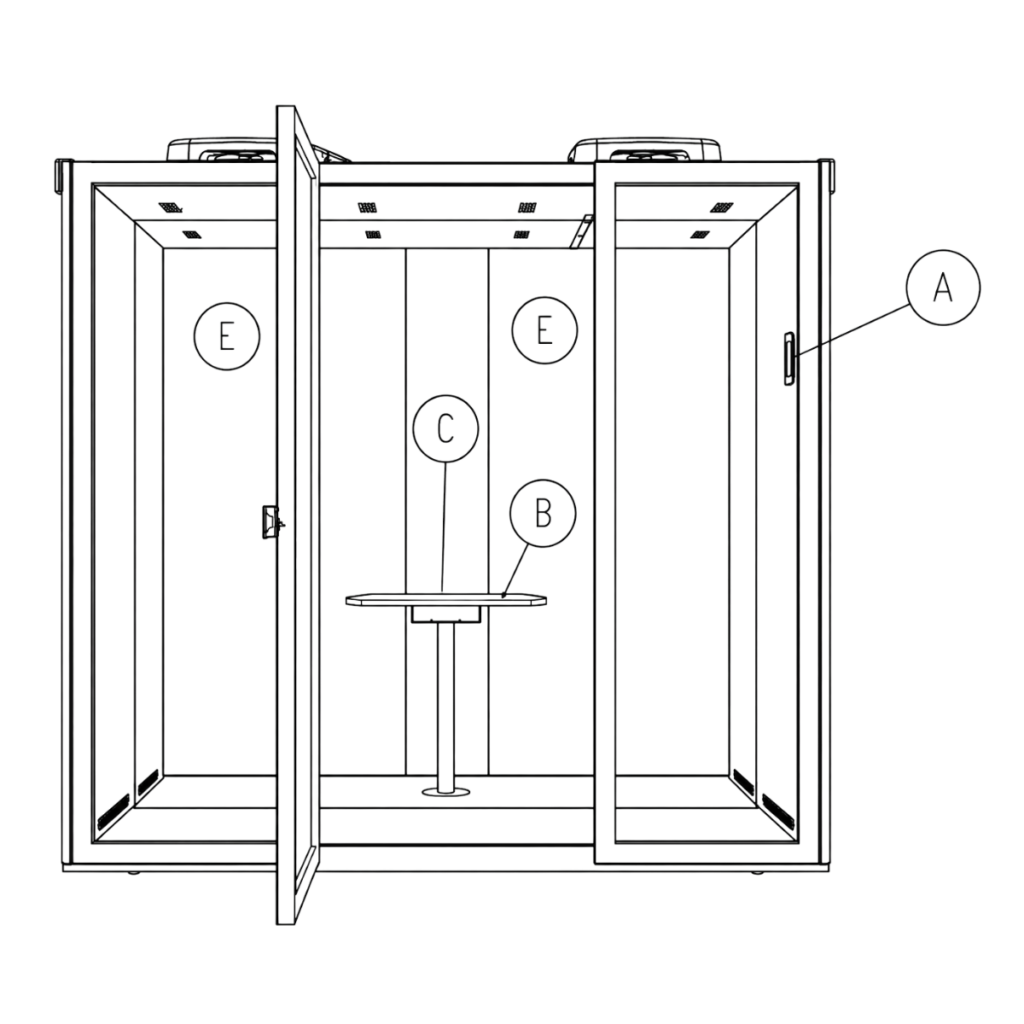

A

C

B

E

E

D

D

Accoustic Properties

28.9 dB according to ISO 23351-1 Speech Level Reduction, DS, A

Material and Dimension

Material: 1.2MM Electro Galvanize Steel

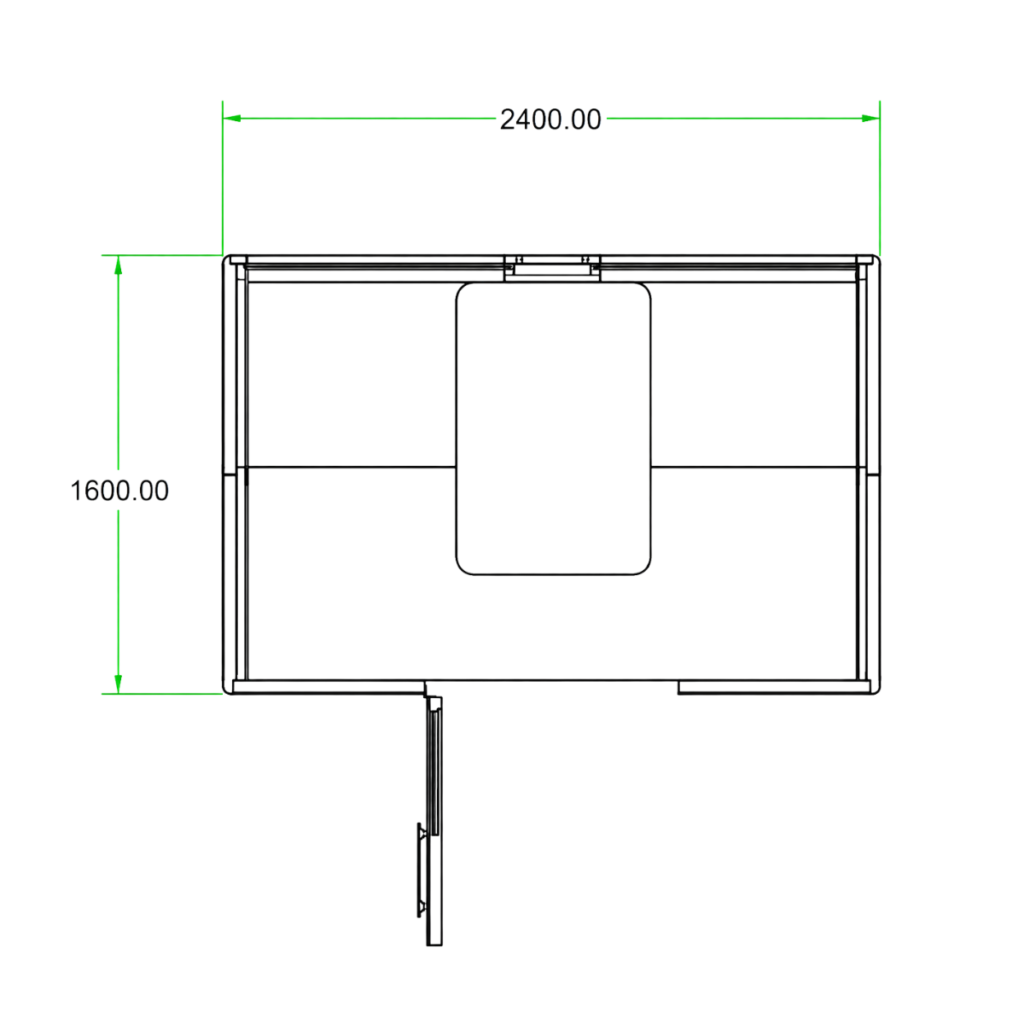

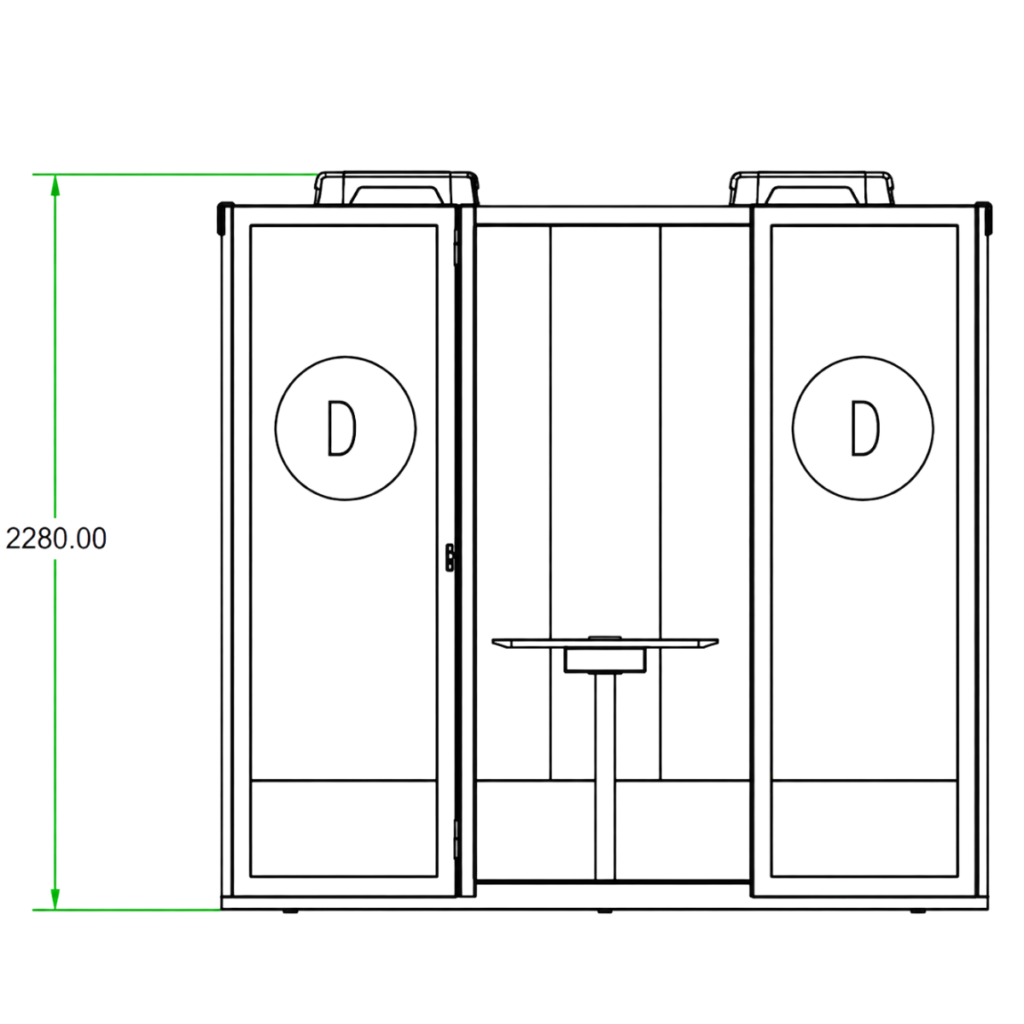

Dimension (External & Internal):
2400MM(W) x 1600MM(D) X 2280MM (H)
2230mm(W) x 1510mm(D) x 2030mm (H)

External and Internal Finishing

External Finishing: Epoxy Powder Coating

Internal Finishing:
Polyester Fiber Acoustic Board

Floor Finishing:
Fiber Nylon Carpet (Black)

Glass Material

Glass Door: Aluminum Frame with 9.52mm Tempered Laminated Glass

Rear Glass: 8mm Tempered Glass

Others Specifications (Door, Table, Universal Socket, Ventilation Fam, Motion Sensor, Lighting LED)

Door Closer: Yes

Table: Melamine Laminated Wood with Chamfered Edge (700mm x 1050mm x 25mm)

AH Meyer Netbox Flush 1 Power Socket & USB A+C: Rated for 110V to 250V with a maximum of 20A. USB A + C, Max 65W.

CAT 6 LAN Outlet: 1 No x CAT 6

Ventilation Fan (8 Fans): 118 CFM per Fan

Motion Sensor: 12V DC, Sensor Duration Adjustable

Lighting LED 4000K: 2 X (21.6W)

Occupancy Indicator Light: Yes

Air Purifying System: 4 Set HEPA Filter

Heavy Duty Castor: NIL

Adjustable Foot Cap: 12Pcs

Power Consumption

Power Consumption: 0.47A

Weight

Net Weight (KG): 800

New Interface Control Hub

Able to adjust:

Light Brightness
Fan Speed
Sensor Duration
Occupancy Light Mode
Intermittent Air Circulation Duration
