S Pod 3.0 Plus

Single-Person Acoustic Pod

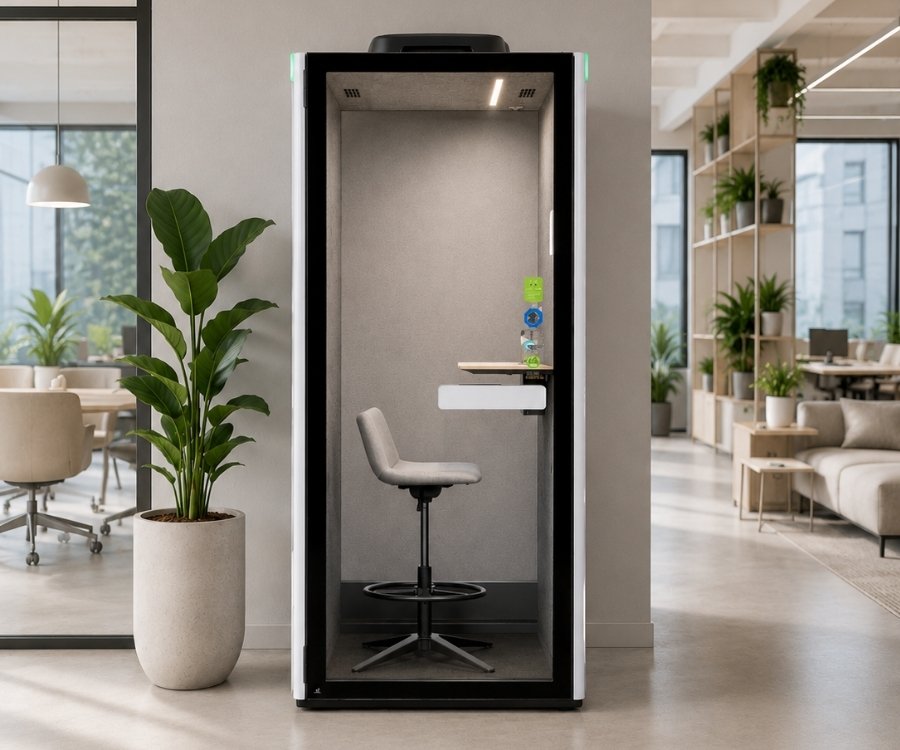

S POD 3.0 plus is a classic pod for single person. In the serene space, an individual can carry out works that requires high level of privacy such as signing contracts, making phone calls, and video conference.
* High stool not included

28.9 dB

Speech Level Reduction

95%

Recyclability rate per UL ECVP 2789

0.18 A

Power Consumption

266 KG

Pod Weight

Technical Specification

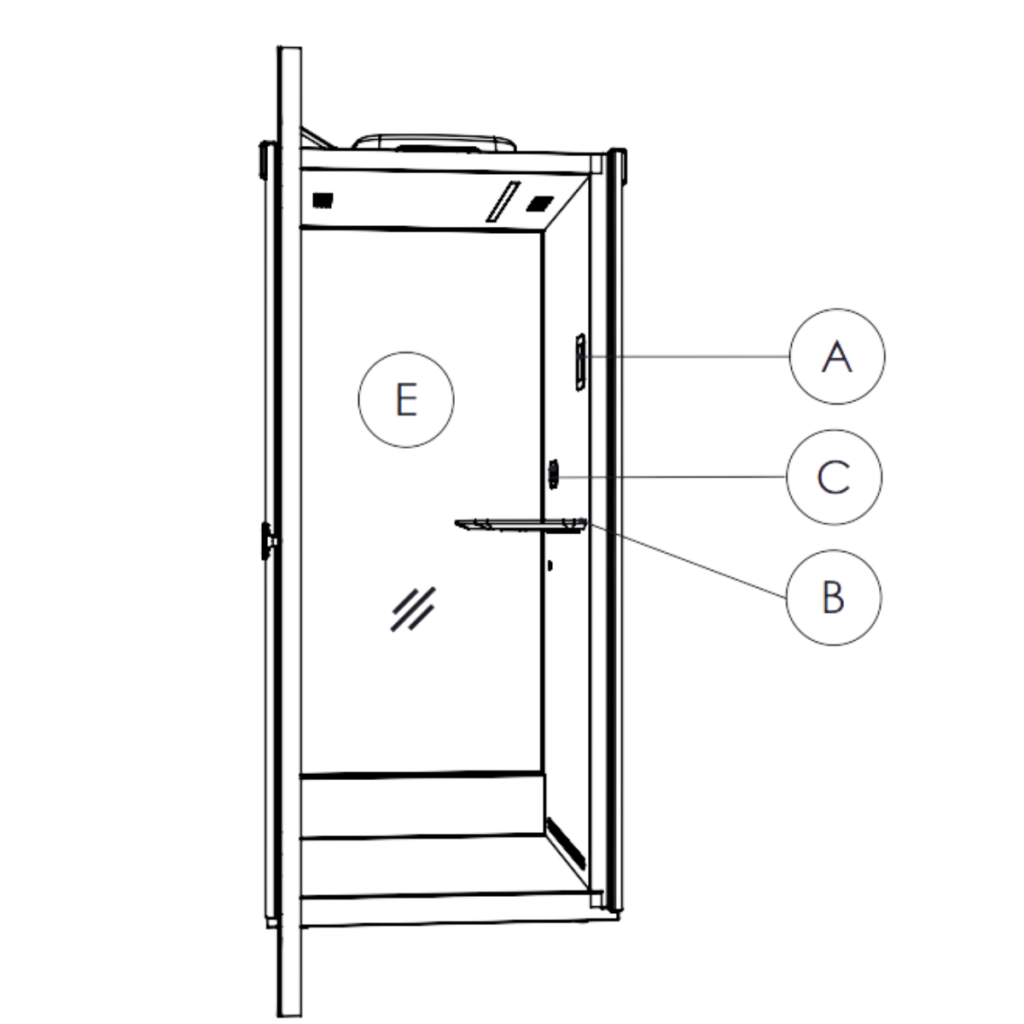

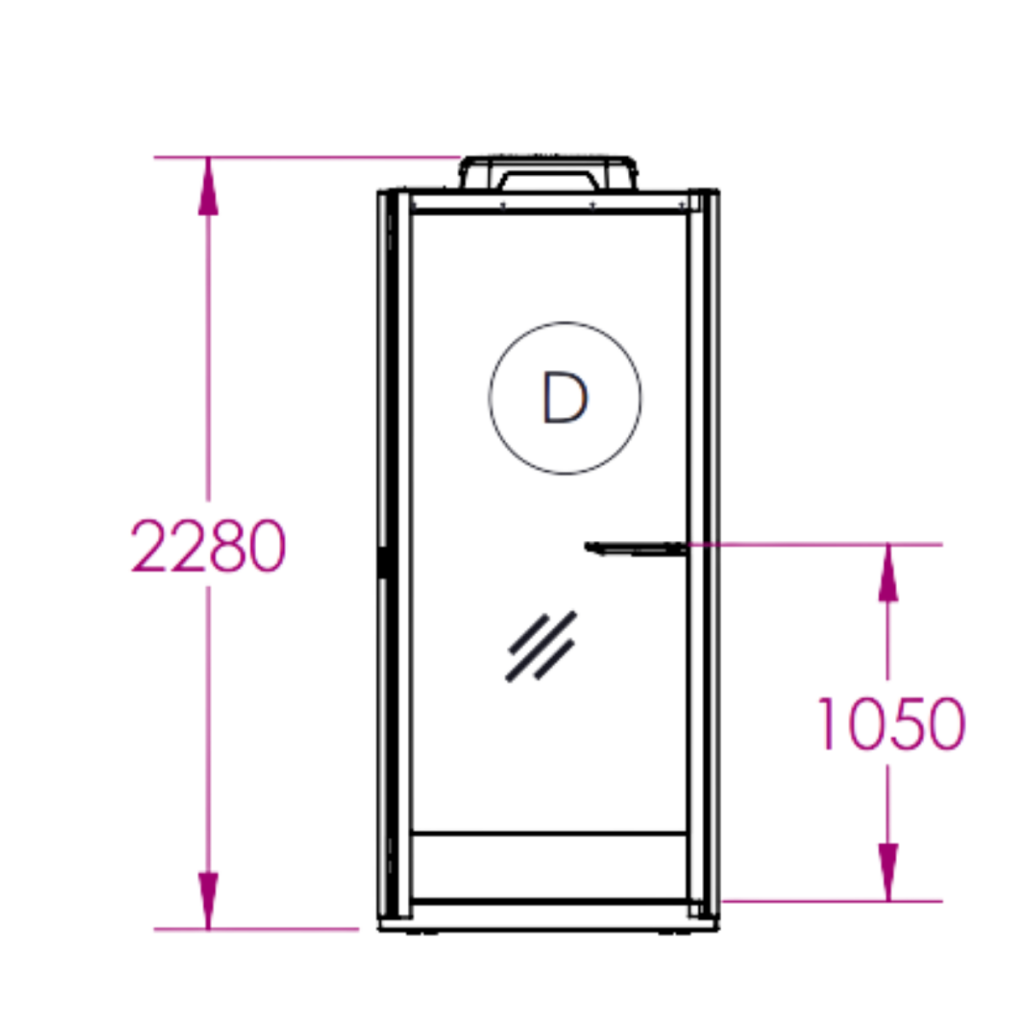

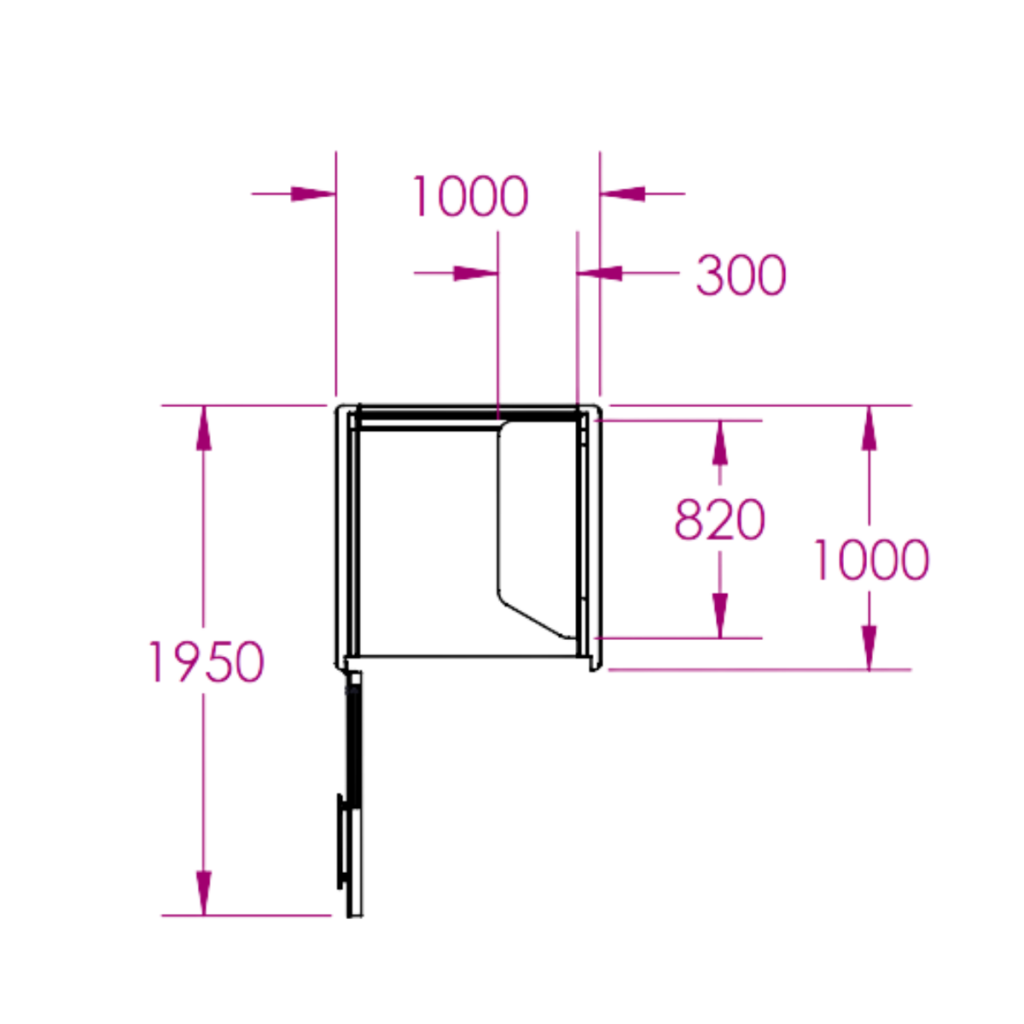

Designed around the way you work.

A

C

B

E

F

G

H

I

D

Accoustic Properties

28.9 dB according to ISO 23351-1 Speech Level Reduction, DS, A

Material and Dimension

Material: 1.2MM Electro Galvanize Steel

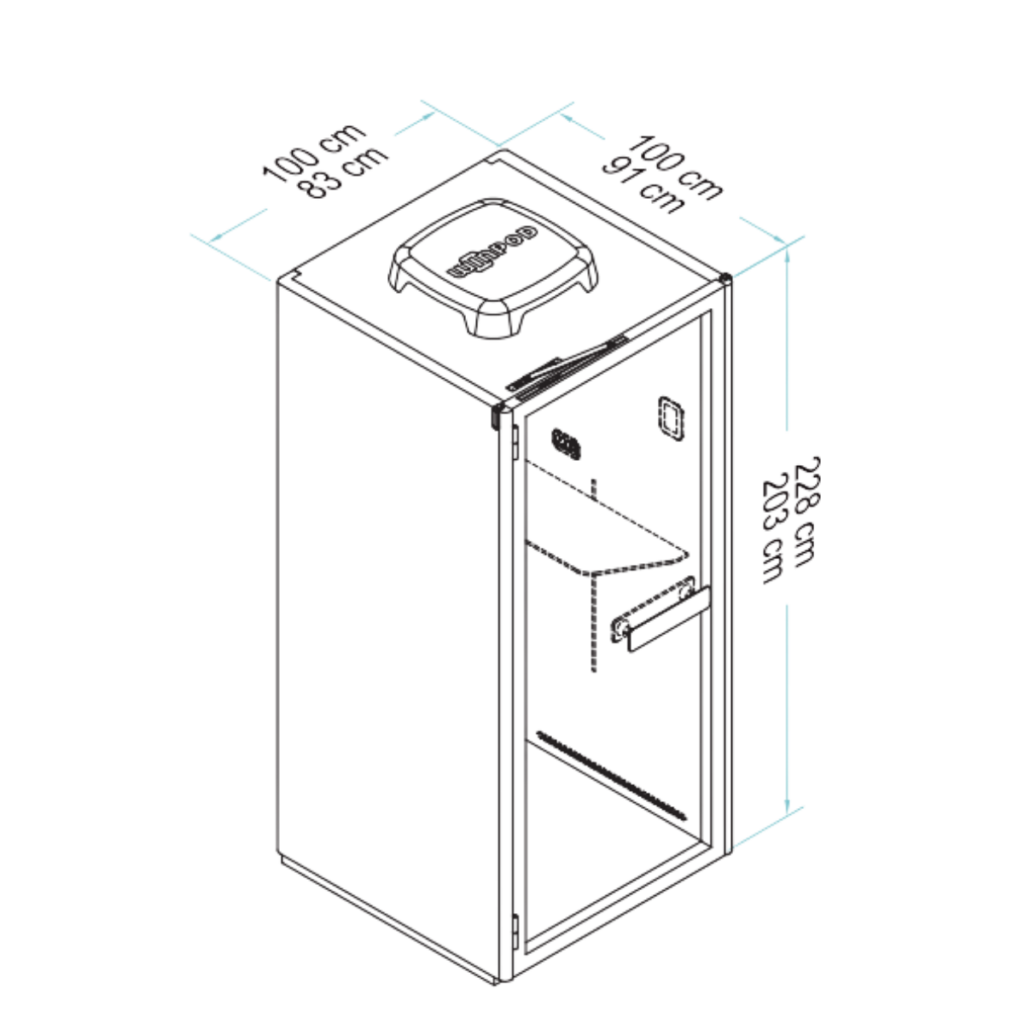

Dimension (External & Internal):
1000MM(W) x 1000MM(D) X 2280MM (H)
830mm(W) x 910mm(D) x 2030mm (H)

External and Internal Finishing

External Finishing:Epoxy Powder Coating

Internal Finishing:
Polyester Fiber Acoustic Board

Floor Finishing:
Fiber Nylon Carpet (Black)

Glass Material

Glass Door: Aluminum Frame with 9.52mm Tempered Laminated Glass

Rear Glass: 8mm Tempered Glass

Others Specifications (Door, Table, Universal Socket, Ventilation Fam, Motion Sensor, Lighting LED)

Door Closer: Yes

Table: Melamine Laminated Wood with Chamfered Edge (820mm x 320mm x 25mm)

AH Meyer Netbox Flush 1 Power Socket & USB A+C: Rated for 110V to 250V with a maximum of 20A. USB A + C, Max 65W.

CAT 6 LAN Outlet: 1 No x CAT 6

Ventilation Fan (2 Fans): 118 CFM per Fan

Motion Sensor: 12V DC, Sensor Duration Adjustable

Lighting LED 4000K: 1 X (11W)

Occupancy Indicator Light: Yes

Air Purifying System: 1 Set HEPA Filter

Heavy Duty Castor: 4Pcs

Power Consumption

Power Consumption: 0.18A

Weight

Net Weight (KG): 266

Packing Weight (KG): 400

Wooden Crate Size

Wooden Crate Size: 2278W x 1138D x 668H (1.74 M3)

New Interface Control Hub

Able to adjust:

Light Brightness
Fan Speed
Sensor Duration
Occupancy Light Mode
Intermittent Air Circulation Duration
